Tomix N Easement Wide PC Curve Track 11" Radius, 22.5°

SKU: TMX01781

$14.99

Tomix N Easement Wide PC Curve Track 11" Radius, 22.5°

SKU: TMX01781

$14.99
4 payments of $3.75 with afterpay
Or Buy Now Pay Later
Have a Question
In stock at offsite warehouse, will usually dispatch within 7-14 days.
Description

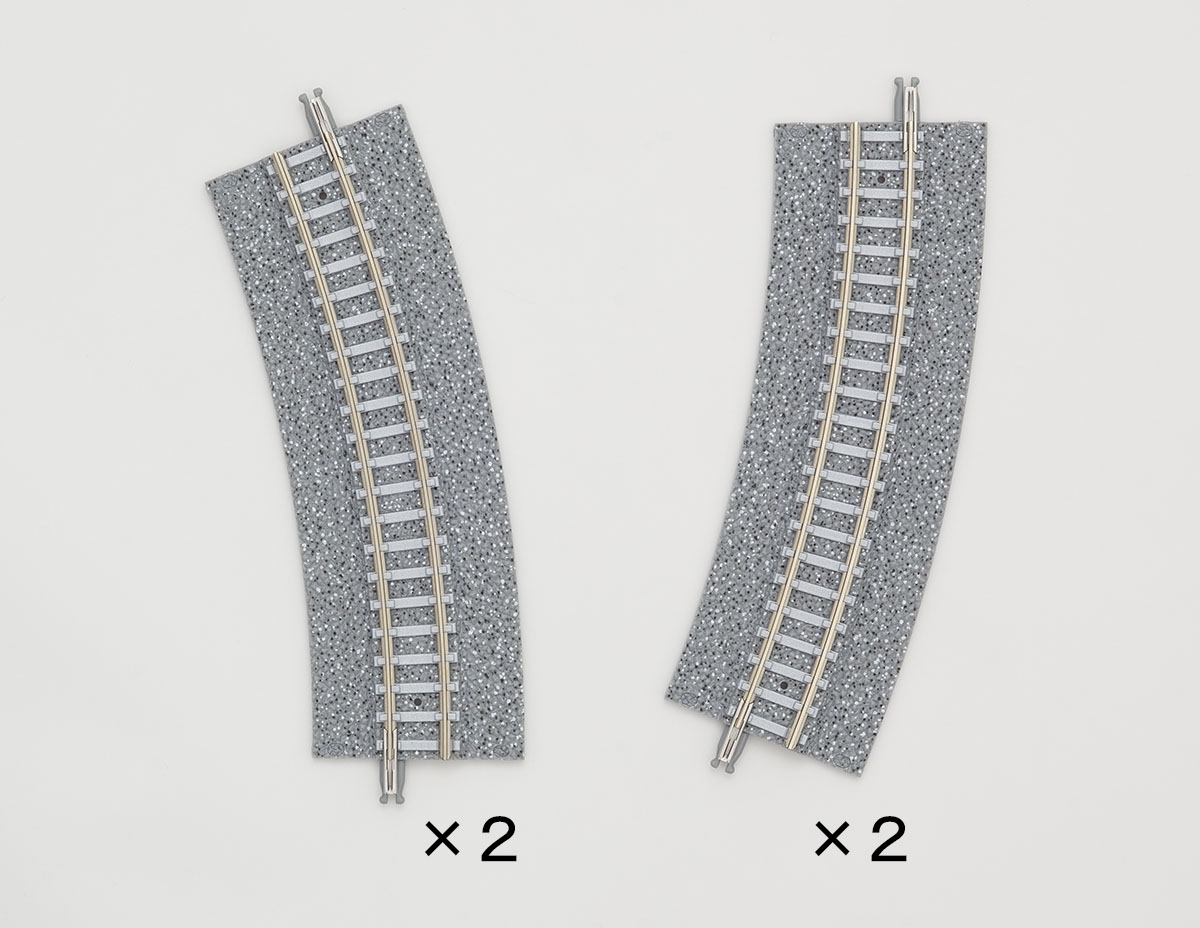

This is a wide curve cant introduction rail with a radius of 280mm, a curve angle of 22.5°, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced from flat without cant to canted rail gradually.

Features

  • Ballast and sleepers are painted for a beautiful appearance
  • PC sleepers are expressed
  • Rails are joined together with nails for easy and reliable connection
  • Connection compatible with conventional TOMIX rails
  • Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
  • Compatible with single-track piers by attaching the separately sold single-track pier base to the bottom
  • Can be used as a double-track rail by connecting CR (L) 317-22.5-WP (sold separately) to the outside
  • Wide rail when used as a double-track rail Compatible with double-track elevated piers by attaching a coupling for the cant section (coupling for wide rails and slab rails on the flat lead-in section) to the underside. - Power supply by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails) . can also be installed, conventional feeders cannot be installed)
  • Compatible with various overhead line pole installations
  • Cant inclination angle gradually changes from 0 degrees to approximately 4 degrees with a curve angle of 22.5 degrees
  • Cant inclines gradually while curving to the right 2 sets each of CR and CL that gradually cant while curving to the left
  • Structurally not compatible with mounting sensors
  • Wide PC approach rail CR280-22.5-WP(F)
  • Wide PC approach rail CL280-22.5-WP(F)
  • Runner parts: Wide rail joint
