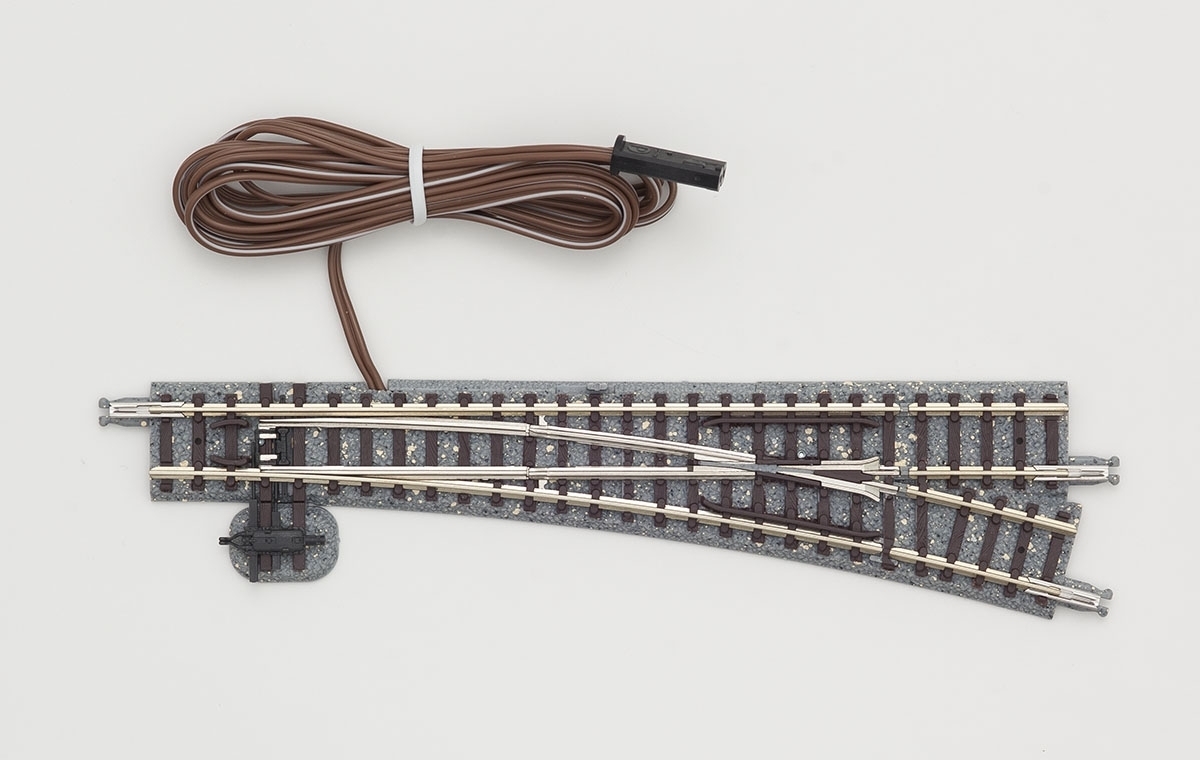

Tomix N Electric Turnout Track Right Hand 21-5/16" 541mm Radius, 15°

SKU: TMX01271

$39.99

Sold Out

Product Details
Reviews

Description

With a length of 140 mm, N-PR541-15 (F) is a standard Tomix electric point that branches to the right and N-PL541-15 (F) to the left. Adopts a complete selection type and can also be used as a spring point.

Features

Connection compatible with conventional TOMIX rails
Rails are joined together with claws
An improved joiner is used for the joiner
Works in combination with point control box N and power unit N
Two rails are energized +- This is a fully selective system that completely switches between two directions using two built-in contacts, so you can enjoy reverse operation and complex point installation with simple electrical wiring. - Double track in combination with existing C541-15 rail . Branching at a spacing of 37mm
By using two wires, a one-way line with double track spacing of 37mm is achieved at a distance of 280mm
Gap is realized by replacing with an insulated joiner (sold separately)
Dummy point motor, spring point sign, manual switching device, sign sticker
